A Simple RFID Server Solution

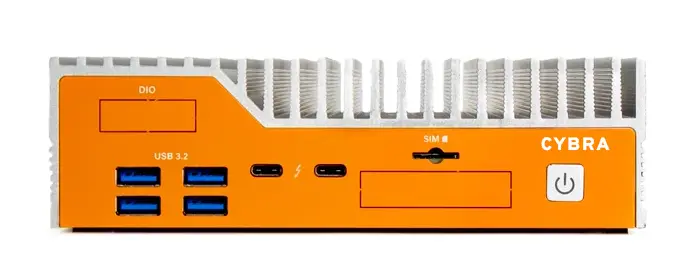

The EdgeBox Controller is a purposefully built RFID server ready to handle the most rugged tasks and environments.
Featuring zero noise, low heat, and minimal energy usage, the EdgeBox Controller is a solid state solution with no moving parts that is designed for maximum uptime. Perfect for unattended installations such as a retail branch in store controller, the CYBRA EdgeBox is ready to go out of the box, engineered for maximum uptime and zero surprises. CYBRA’s EdgeBox assures easy roll outs of Edgefinity IoT based RFID solutions.
Use Cases
The high-quality nickel-plated steel chassis with aluminum extrusion is ideal for environments requiring durability. The built-in VESA MIS-D 75 mm mounting holes allow for display mounting, and the system is available with optional wall and DIN rail brackets for use in a variety of environments.
Vehicles
Stores
Warehouses
Shop Floors
An RFID server plays a crucial role in the implementation and management of Radio-Frequency Identification (RFID) systems. The purpose of an RFID server is to act as an intermediary between RFID readers and the enterprise software systems, facilitating the smooth integration of RFID data into broader business applications. Here are some key purposes and functions of CYBRA’s RFID server:
- Data Filtering and Processing: RFID systems generate a significant amount of data as RFID readers collect information from RFID tags. The EdgeBox RFID server filters and processes this raw data, ensuring that only relevant and essential information is forwarded to the enterprise systems.
- Integration with Enterprise Systems: RFID servers bridge the gap between RFID hardware and enterprise-level software systems, such as Enterprise Resource Planning (ERP) systems, Warehouse Management Systems (WMS), Inventory Management Systems, or RFID tracking software products. They facilitate the integration of RFID data into these systems, allowing for real-time updates and improved visibility across the supply chain.
- Data Transformation and Standardization: The EdgeBox server can perform data transformation and standardization tasks. This involves converting raw RFID data into a standardized format that is compatible with the data formats used by enterprise applications. Standardizing data ensures consistency and ease of integration.
- Event Handling and Triggering Actions: The RFID server can be configured to work in tandem with Edgefinity IoT’s Rules Engine in order to handle specific events or triggers based on RFID tag reads. For example, when a tagged item enters or exits a specific location, the server may trigger predefined actions such as updating inventory levels, generating alerts, or initiating workflows.
- Device Management: The EdgeBox can help provide tools for managing and configuring RFID reader devices. This includes tasks such as firmware updates, monitoring device health, and adjusting reader settings to optimize performance.
- Reporting and Analytics: The RFID server facilitates reporting and analytics capabilities within your Edgefinity IoT system. The server helps capture and generate reports on RFID data trends, track the movement of tagged items, and provide insights that can be valuable for decision-making and process optimization.
- Improved Integration with RFID Systems
- Real-Time Visibility
- Enhanced Data Accuracy
- Efficient Data Management
- Event Handling and Automation
- Enhanced Security Measures
- Improved Device Management
- Scalability and Flexibility
- Reduction in Data Redundancy
Products Specs
- Intel NUC (Next Unit of Computing) form factor
- Processor: 2.80 GHz Intel Core i
- Memory: 8GB DDR3 1600/1333/1066 SO-DIMM
- Storage: 250 GB SSD
- Graphics: Intel HD Graphics 4000
- Onboard LAN: Intel 82579LM Gigabit Ethernet
- Single-interface heatsink
- Operating Temperature Range – 0°C ~ 40°C
- Power: DC 19V
- Expansion options for additional I/O, Wi-Fi, Bluetooth
- Optional Uninterruptible Power Supply (UPS)
- Built-in VESA MIS-D 75 mounting holes
- Optional rail mounting kit
- Mount controller to any horizontal or vertical surface
Additional Details
- CYBRA’s Edgefinity IoT RFID Platform Software preloaded
- Ultra small Industrial Computer
- Designed for maximum uptime
- Dustproof, ventless, fanless chassis
- Solid State solution – no moving parts
- System consumes less than 30W
- Smart Power Button with auto power on feature
Choice of Operating System
- Microsoft Windows 8, 64-bit
- Microsoft Windows 8 Professional, 64-bit
- Microsoft Windows 7 Professional, 32-bit/64-bit
- Microsoft Windows Embedded Standard 7 E, 64-bit
- Ubuntu 12.04.4 LTS 32-bit/64-bit
Dimensions
Measuring 196 x 37 x 131 mm ( 7.7″ x 1.45″ x 5.17″), the EdgeBox is small enough for discreet placement in space constrained environments, including kiosks or beneath a workstation. Based on Intel’s Next Unit of Computing form factor, the EdgeBox allows for unprecedented performance in a compact footprint.
RFID Check-In / Check-Out Systems
For manufacturing plants, utility operations, and other facilities, managing attendance, tracking assets, and controlling access are essential daily tasks. Traditional methods of check-in and check-out, like paper logs and manual ID scanning, are time-consuming and...
From RAIN to Gain: Unleashing a Torrent of RFID Innovation
CYBRA Joins RAIN RFID Alliance October 23, 2024—New York, NY – CYBRA Corporation, pioneers in RFID technology for over 15 years, announces its official membership in the RAIN RFID Alliance, joining the ranks of global industry leaders like Impinj, NXP, and Avery...
Interested in the EdgeBox Controller?
Contact CYBRA to discuss your specific software and hardware needs, and to see how CYBRA’s Edgebox Controller can positively impact your business.
