After choosing the user library to export from and clicking the Search button, you will be shown a full list for formats from that user library.

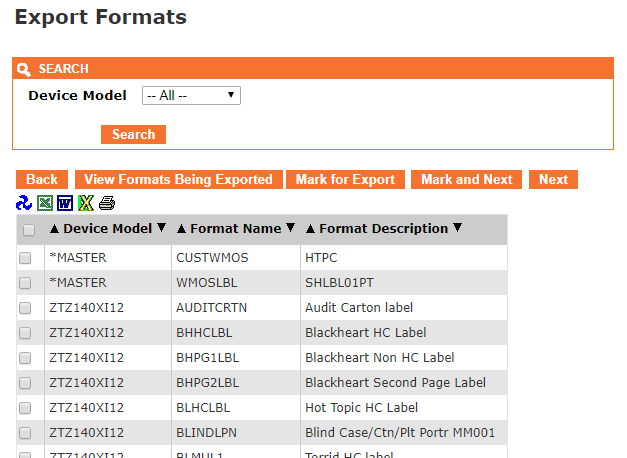

Example list of formats:




  • The Back button takes you one screen back in the export process.
  • The View Formats Being Exported button will show a list of formats that have already been "marked" for export by having had a check mark placed next to them and the Mark for Export button pressed.
  • The Mark for Export button will select the formats that have a check next to them and prepare them for export.  You will stay on the present screen allowing you to search for and select more formats.
  • The Mark and Next button will select the formats that have a check next to them, prepare them for export and will immediately take you to the next MMPI object screen for exporting.
  • The Next button will skip over the current MMPI object type without exporting anything and take you to the next object screen for exporting.


You can filter the list by Device Model by choosing a specific device in the list at the top.  To export a format, place a check mark next to the format in the list.  If you wish to export every format in the list, you can place a check mark at the very top of the list in the header portion.

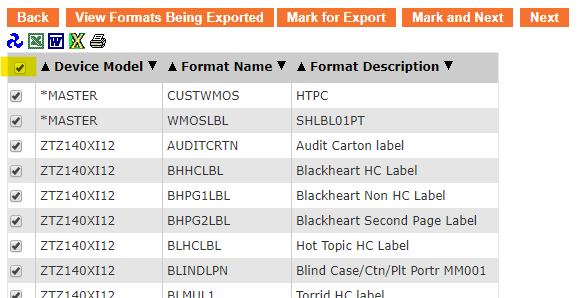

Example showing "Select All" check mark at top of list:



Once you have every format checked that you want to export, click Mark and Next to be taken to a list of target graphics for export.


Proceed to Exporting Target Graphics.
